脚本联网部署openstack集群

文档说明

目的

本文档主要介绍Mstack v.1.1产品的精简安装指南，包括操作系统、软件的安装、配置，主要目的是为软件的安装者说明软件的安装步骤、配置。

版本信息

准备部署节点

操作系统手工安装

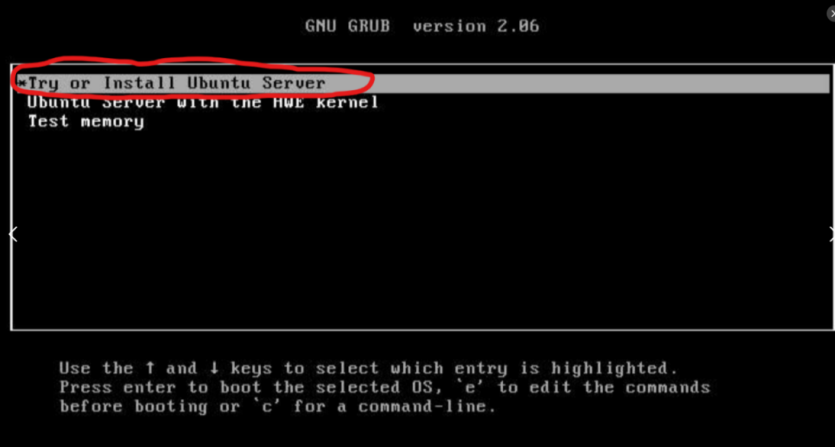

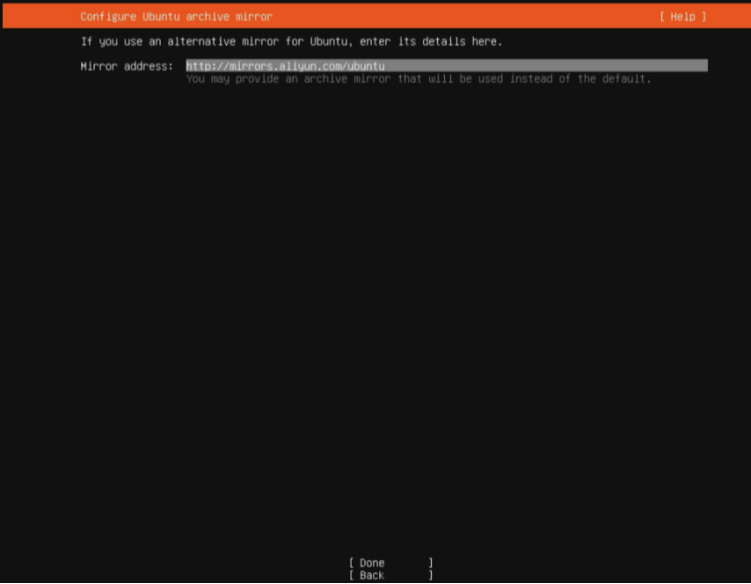

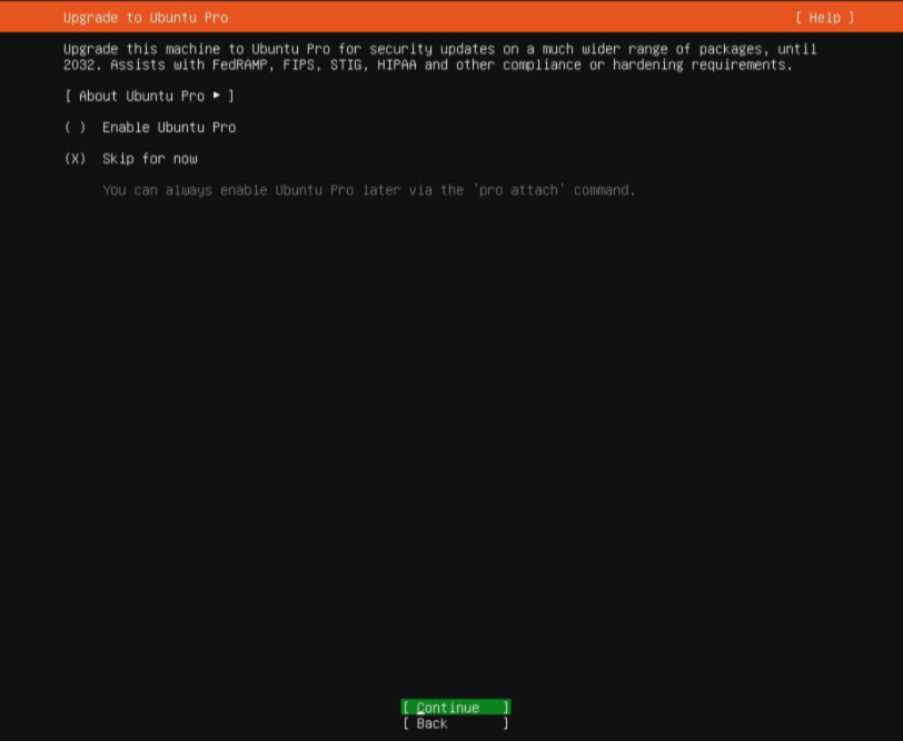

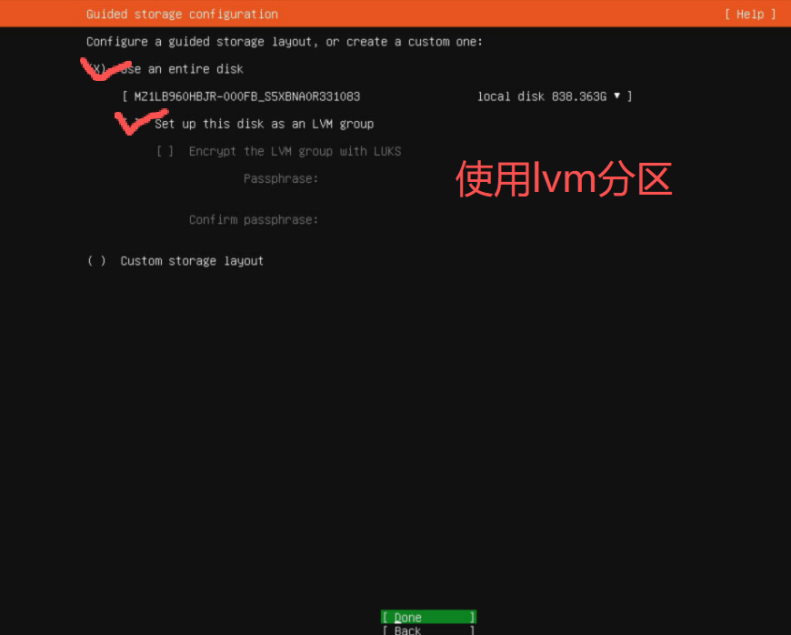

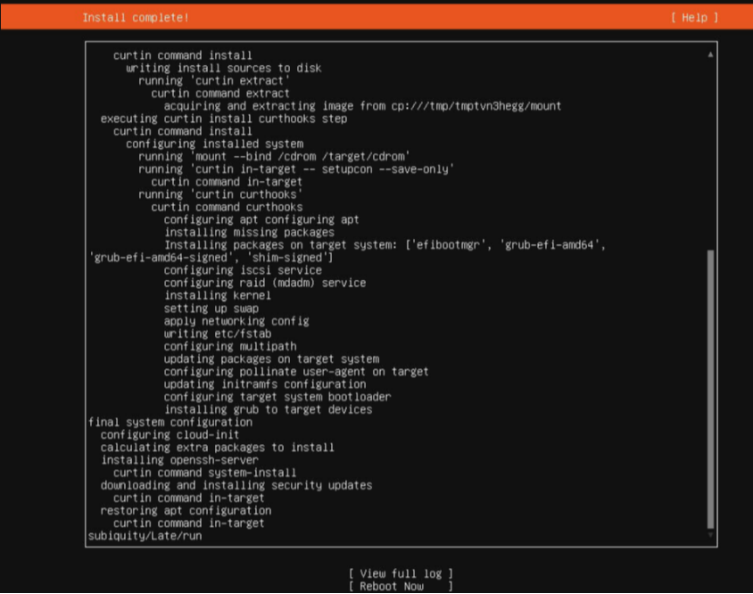

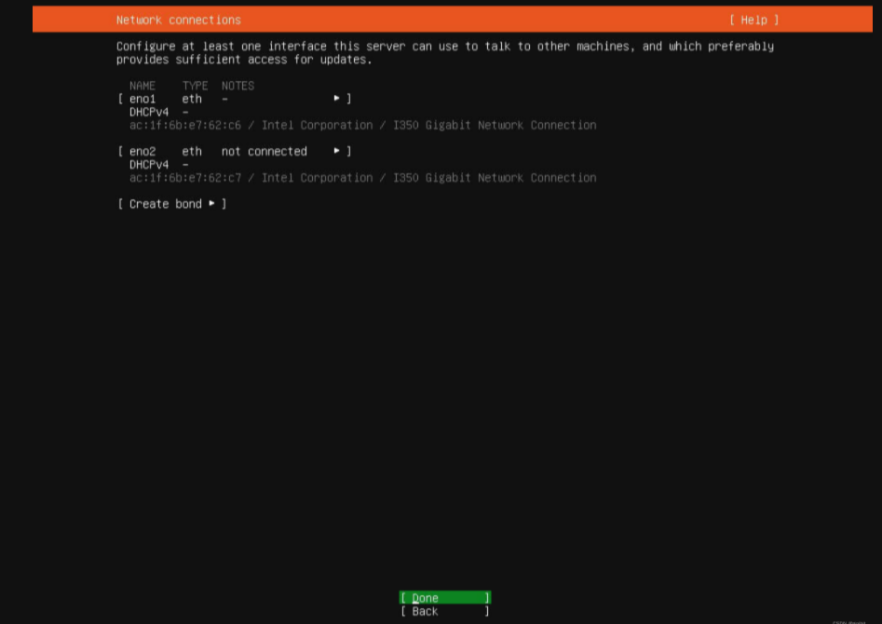

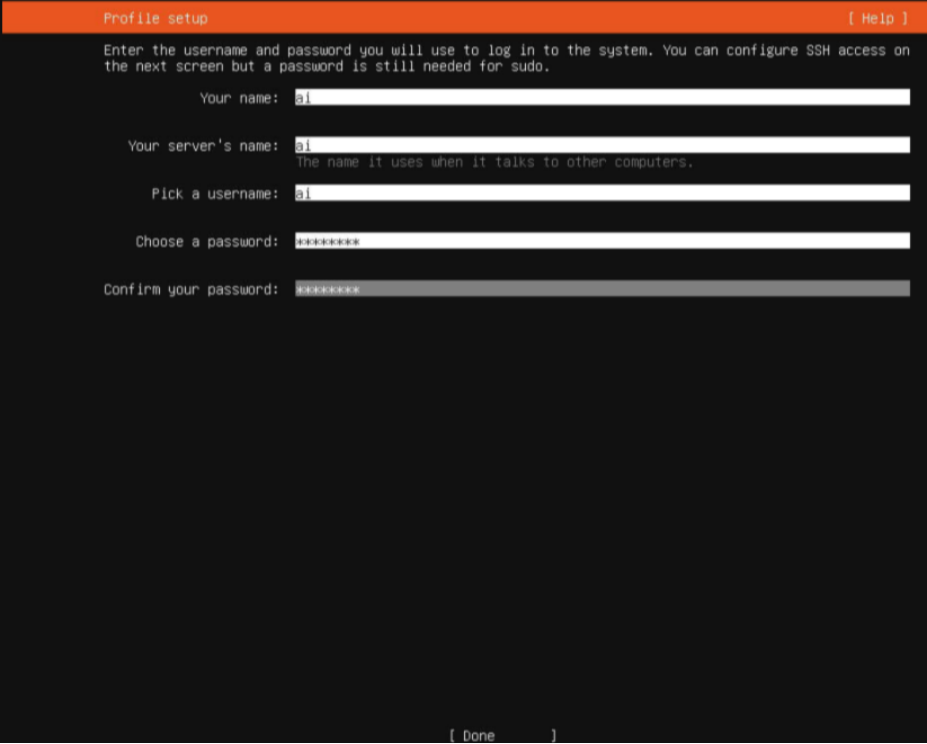

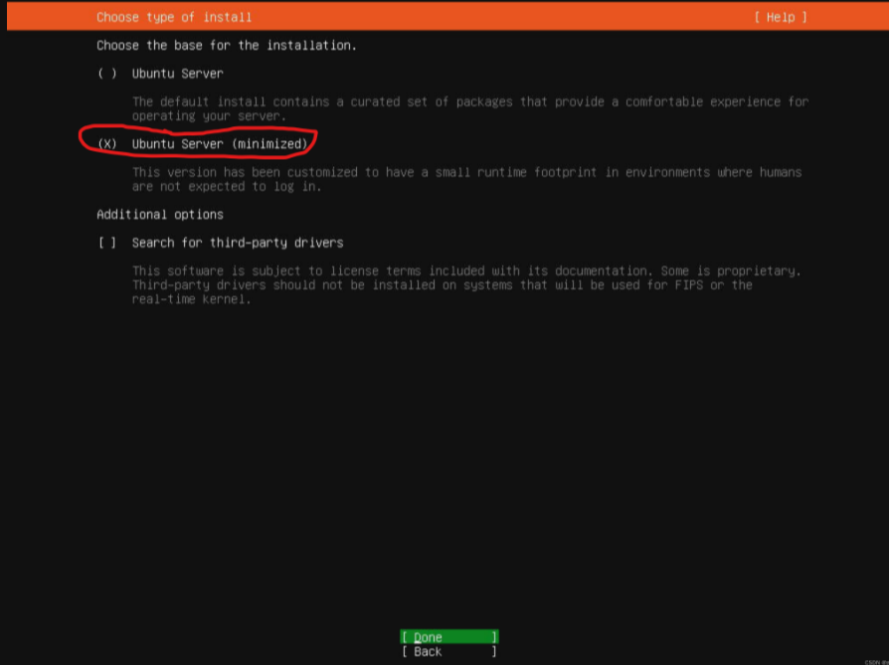

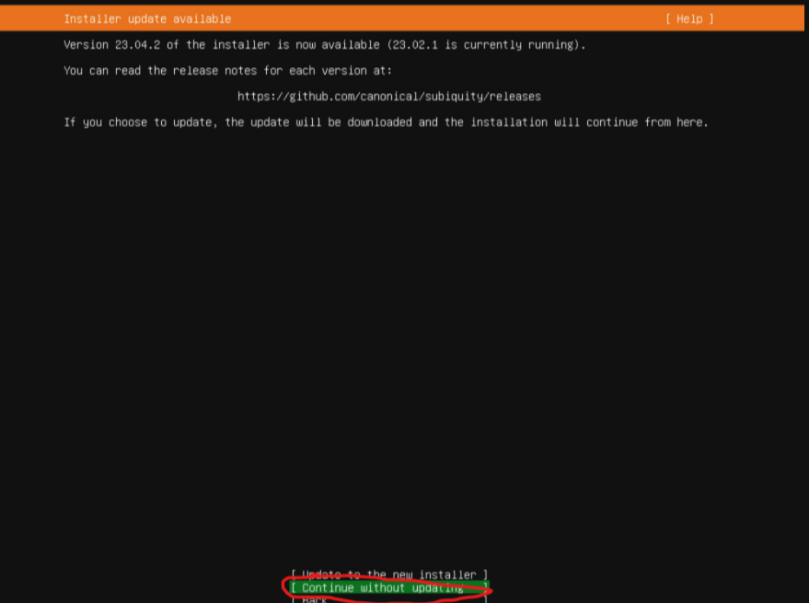

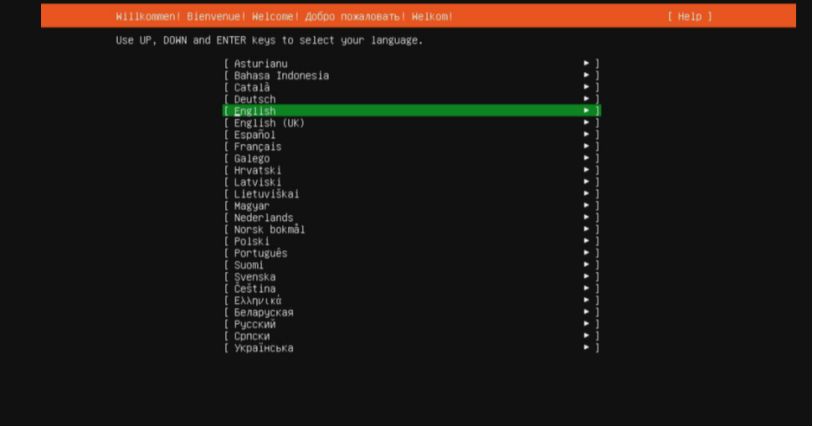

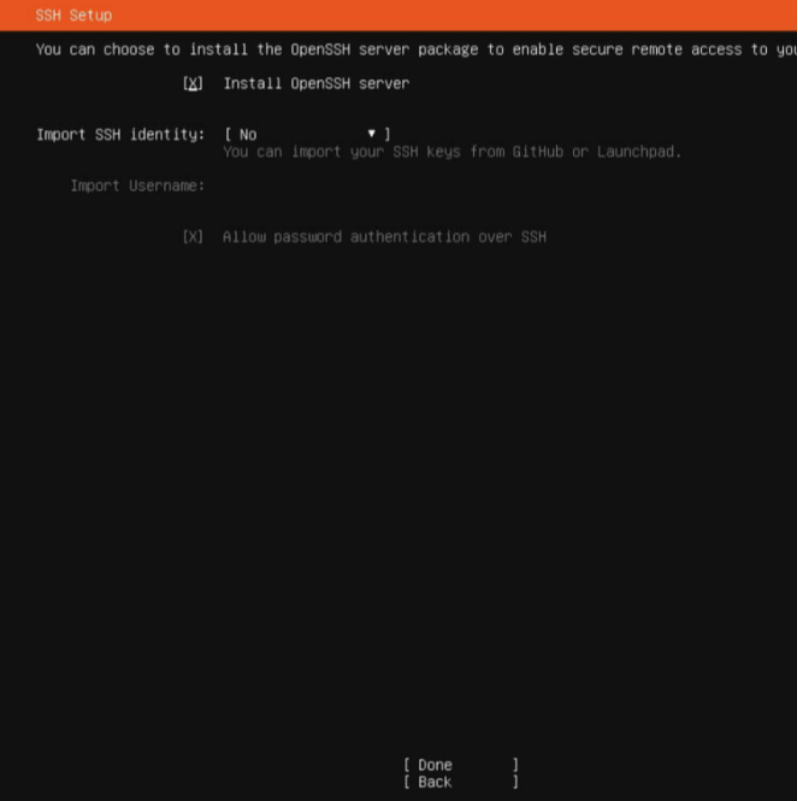

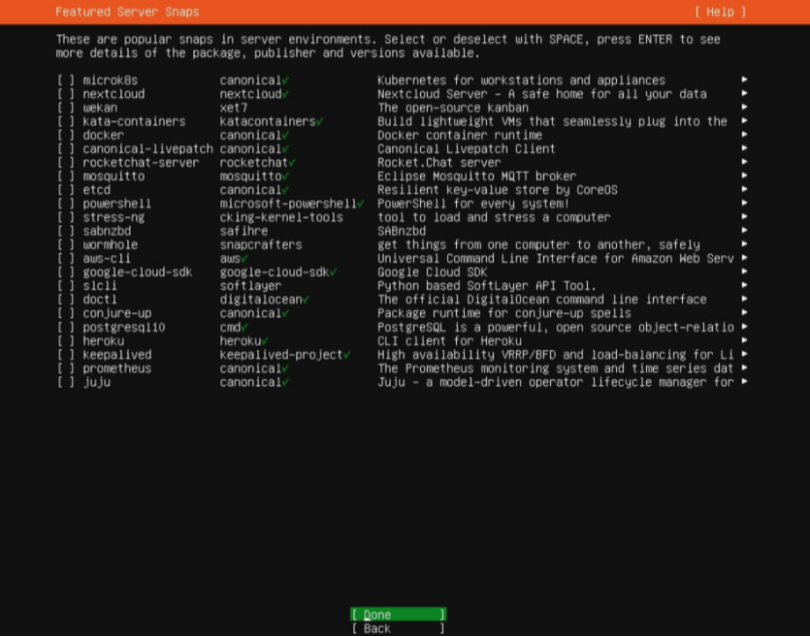

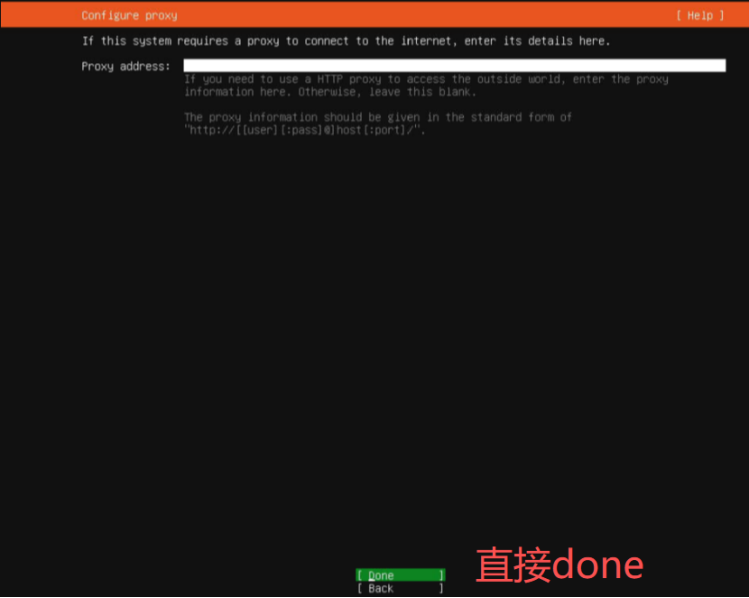

ubuntu-22.04.5-live-server-amd64.iso

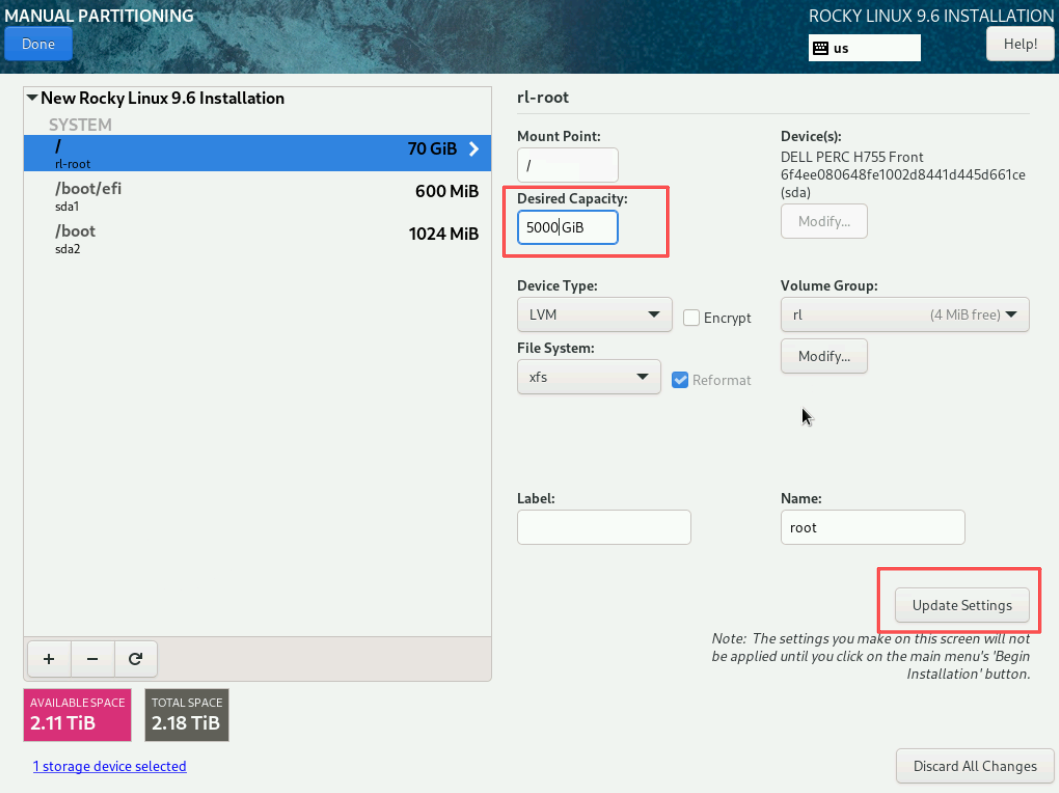

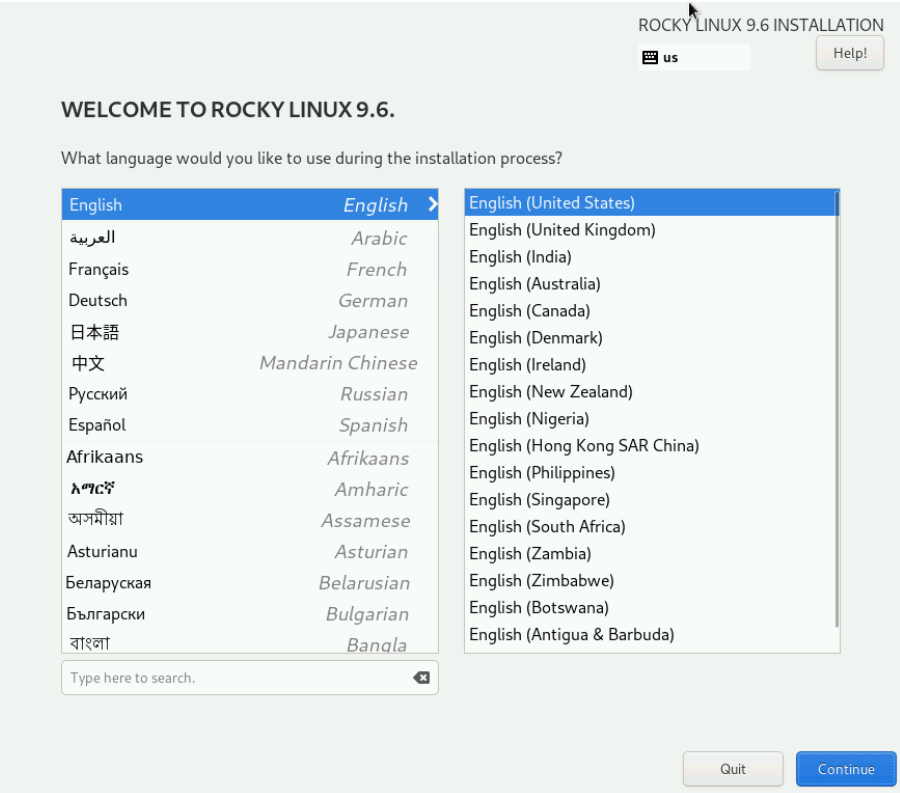

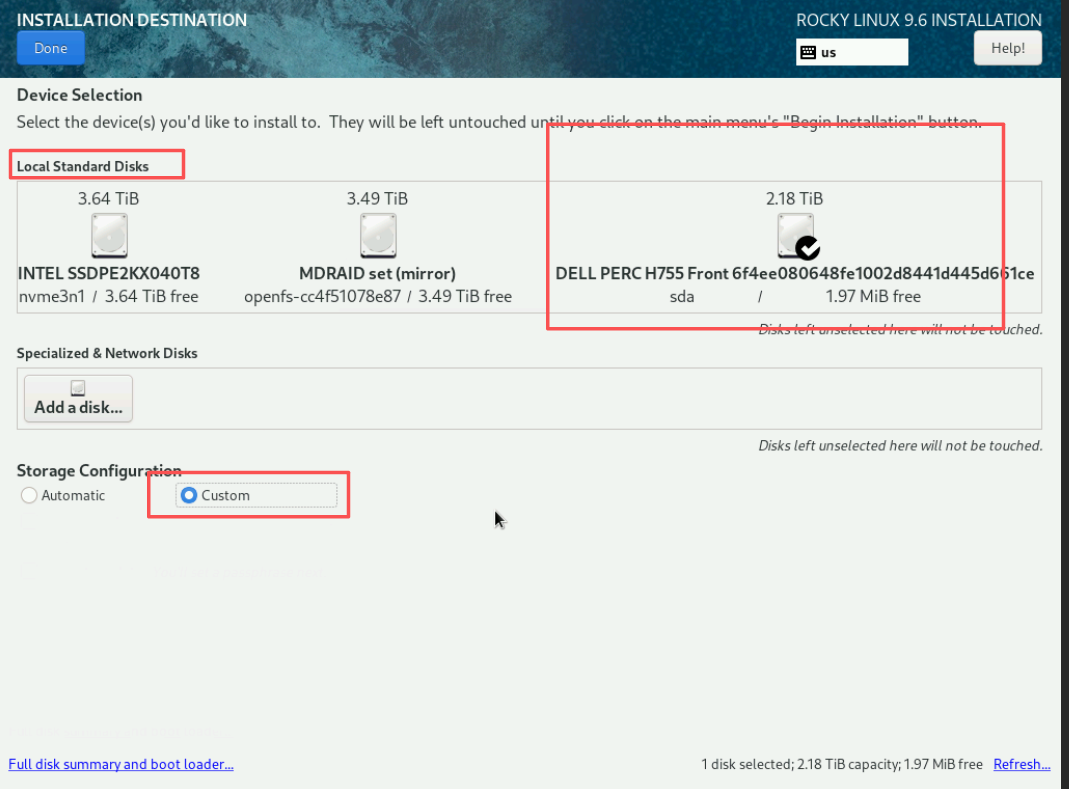

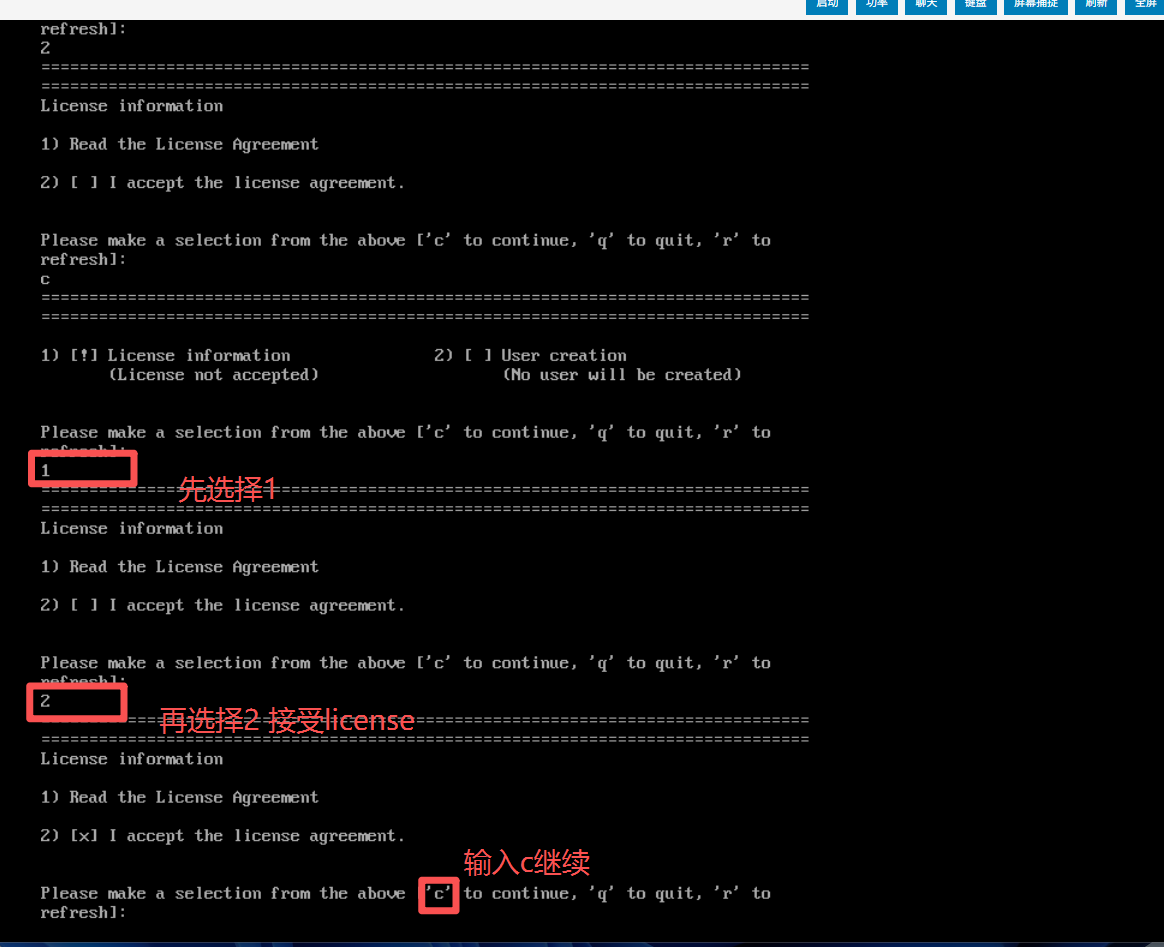

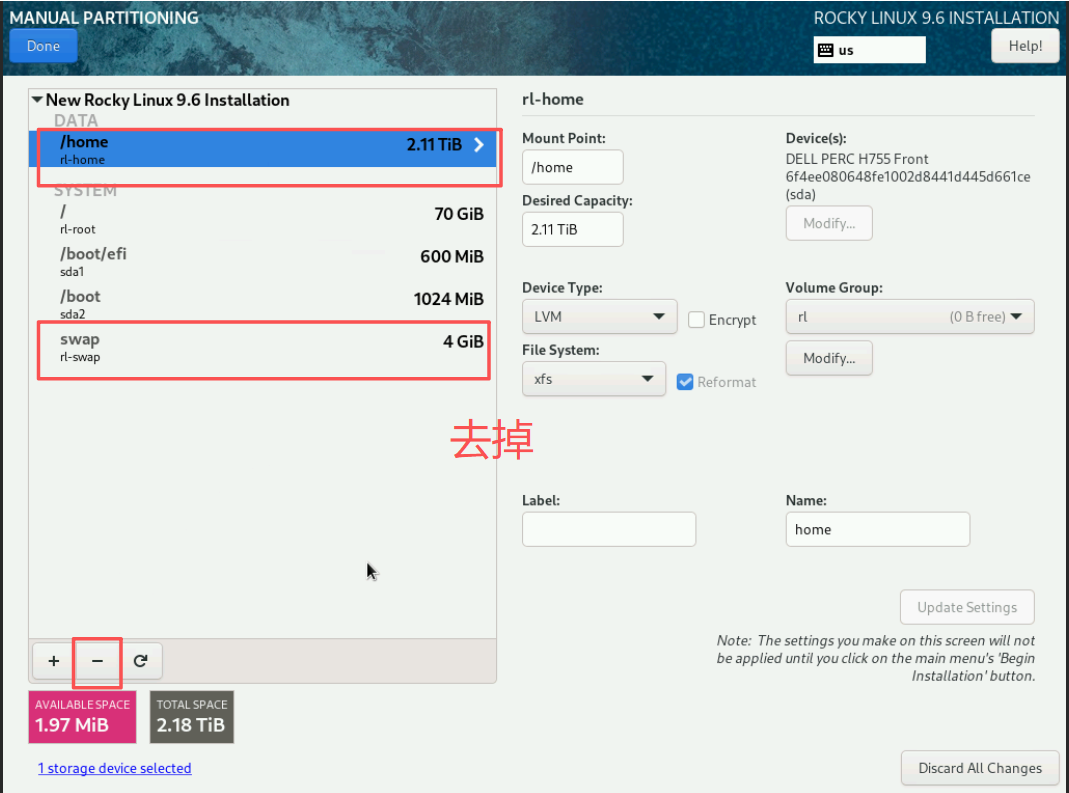

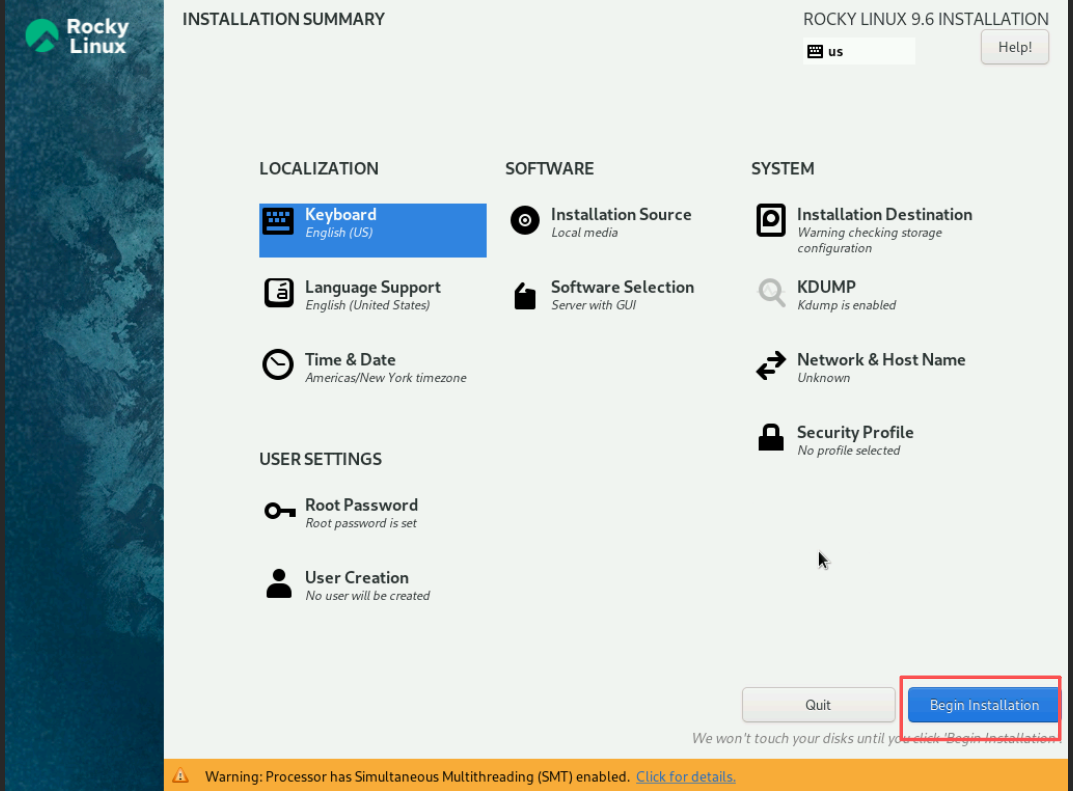

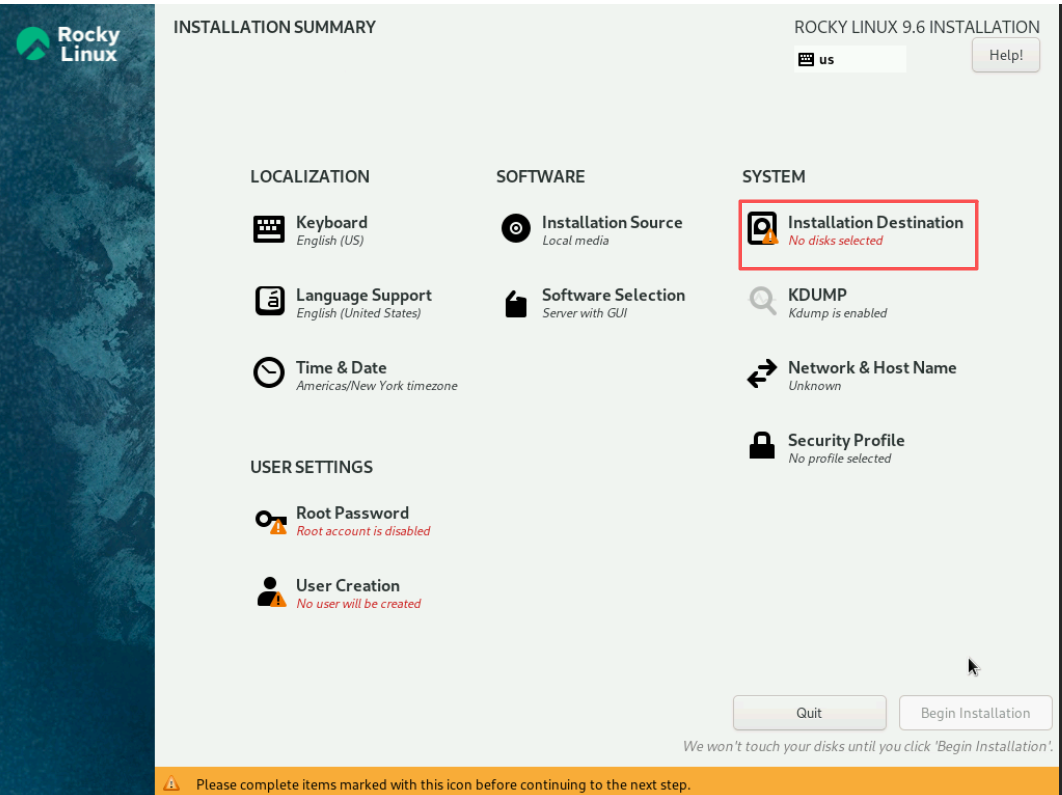

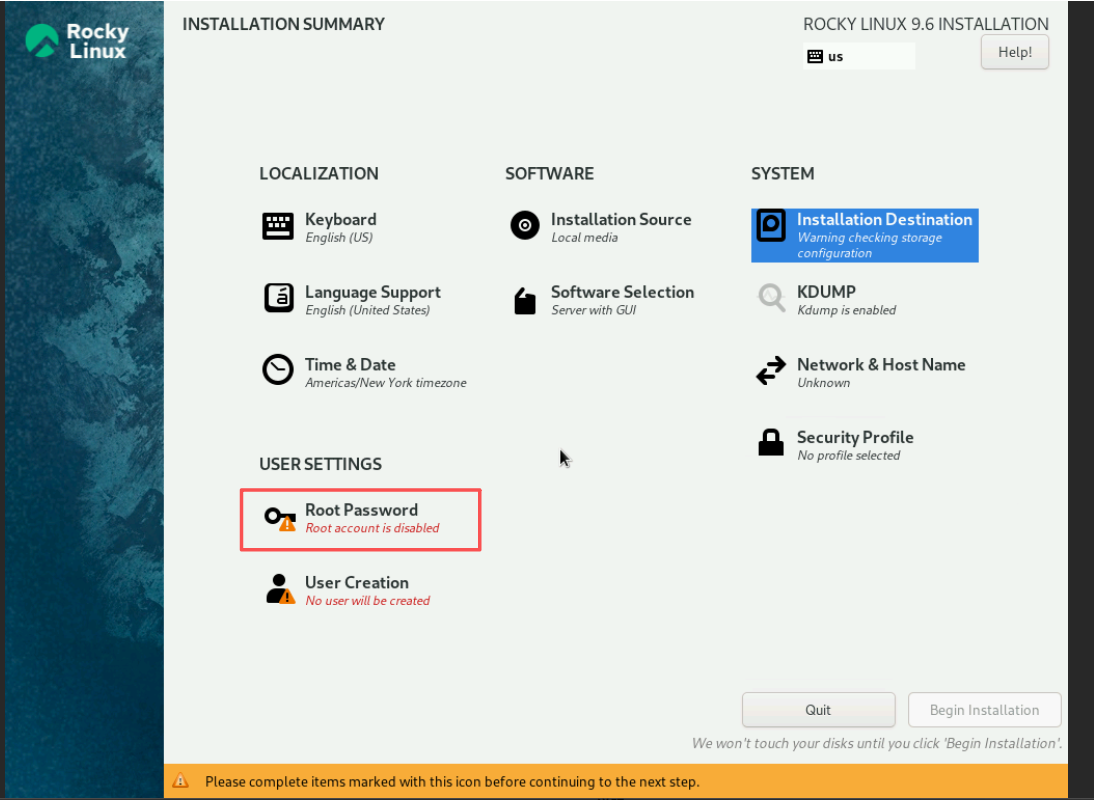

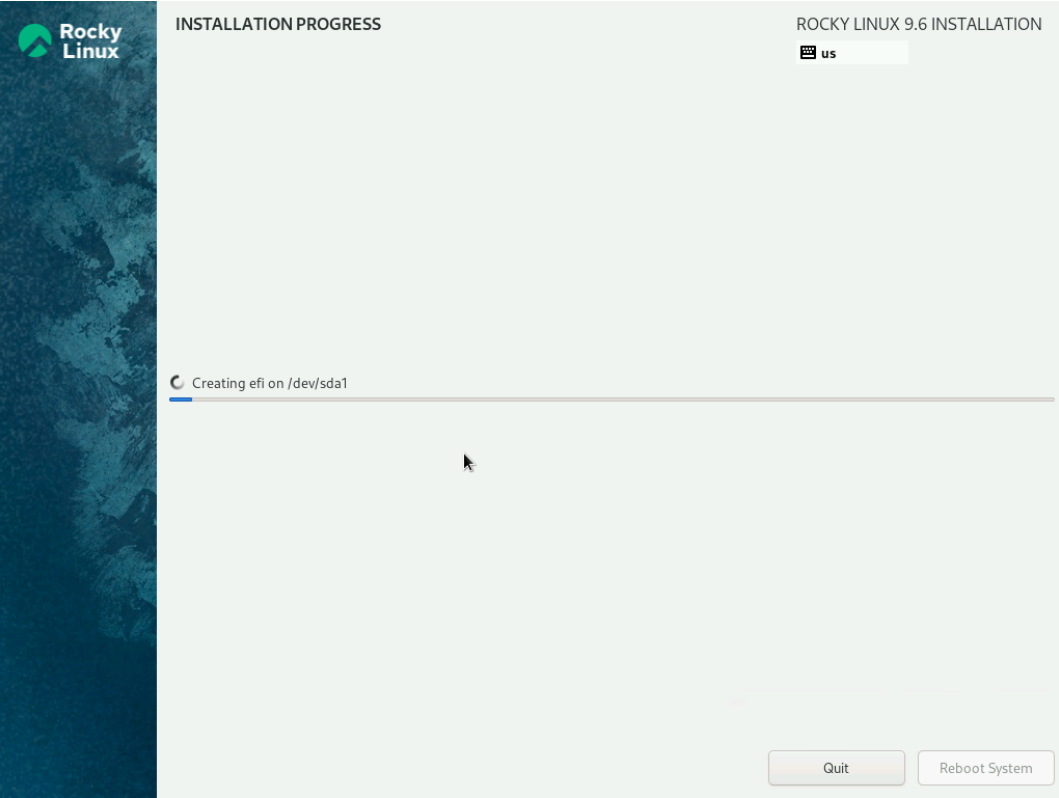

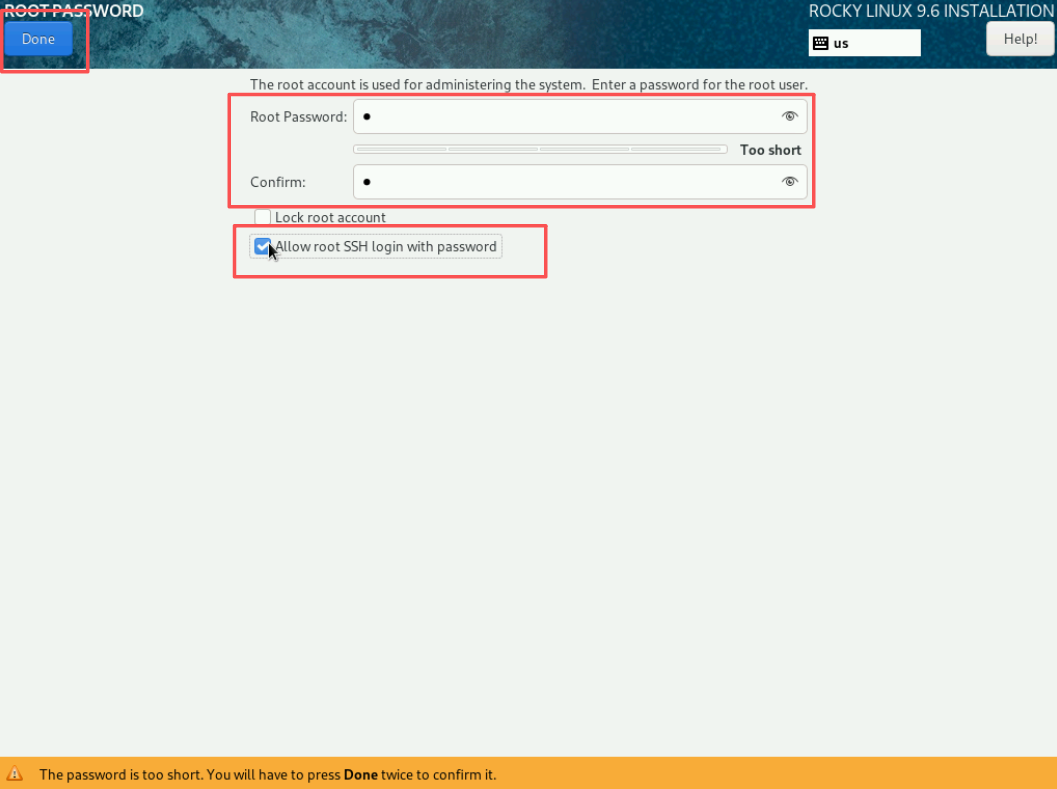

Rocky-9.6-x86_64-minimal.iso

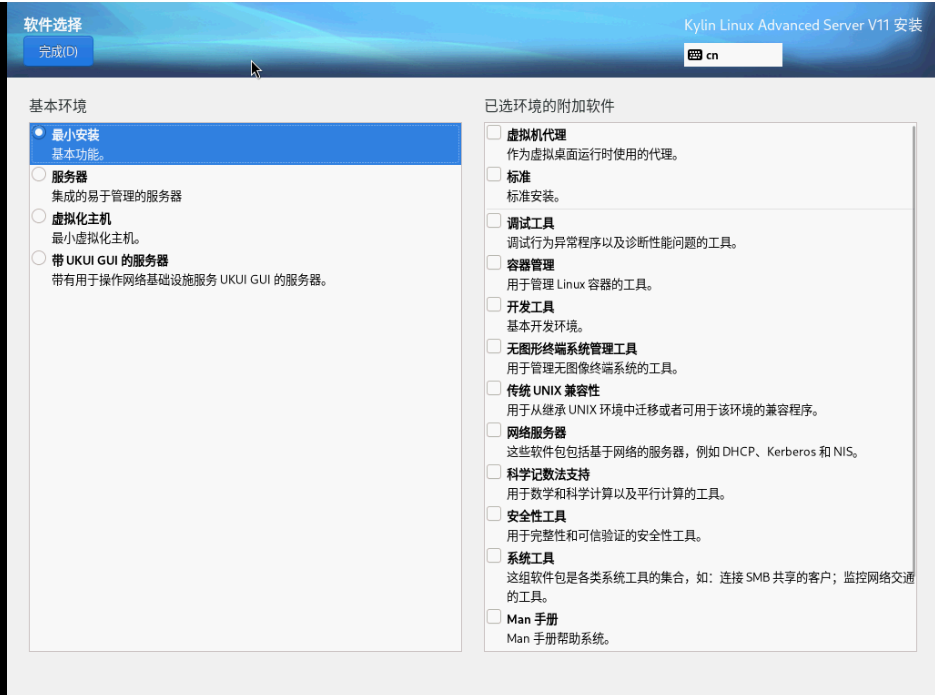

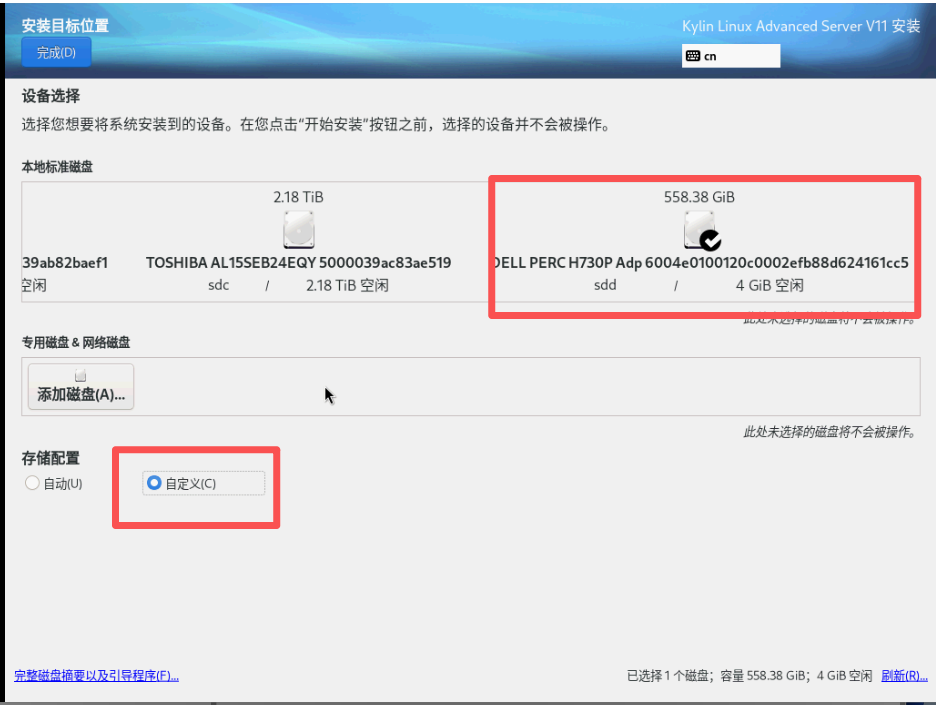

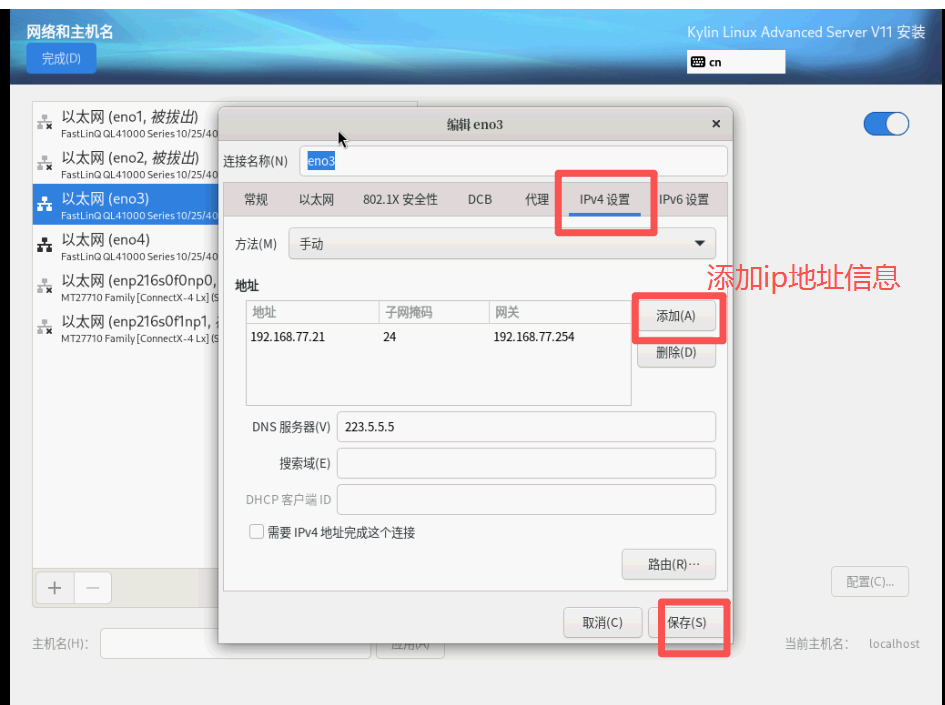

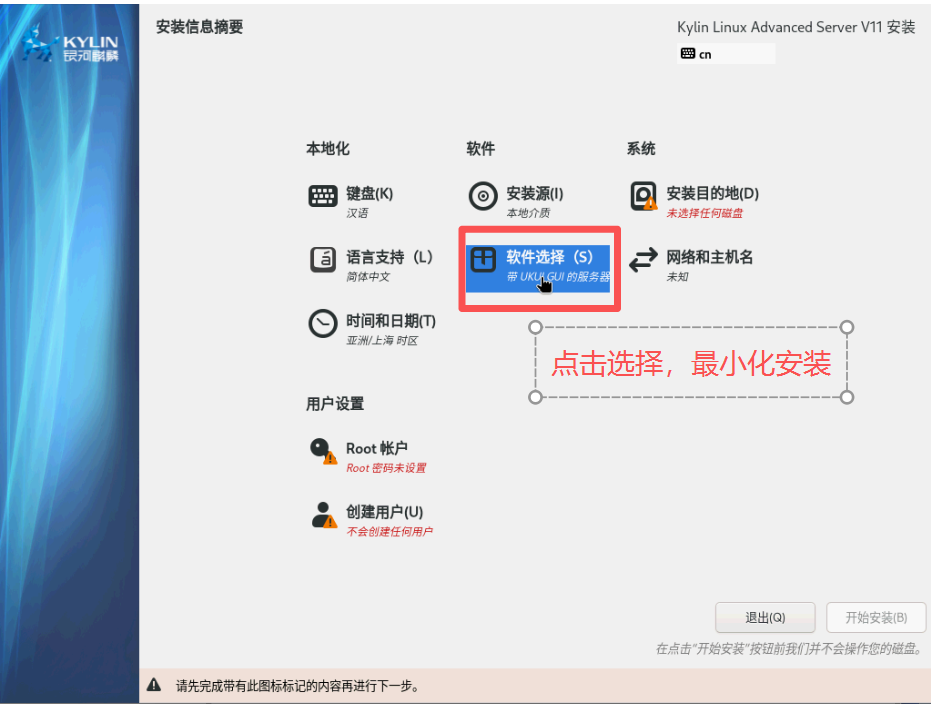

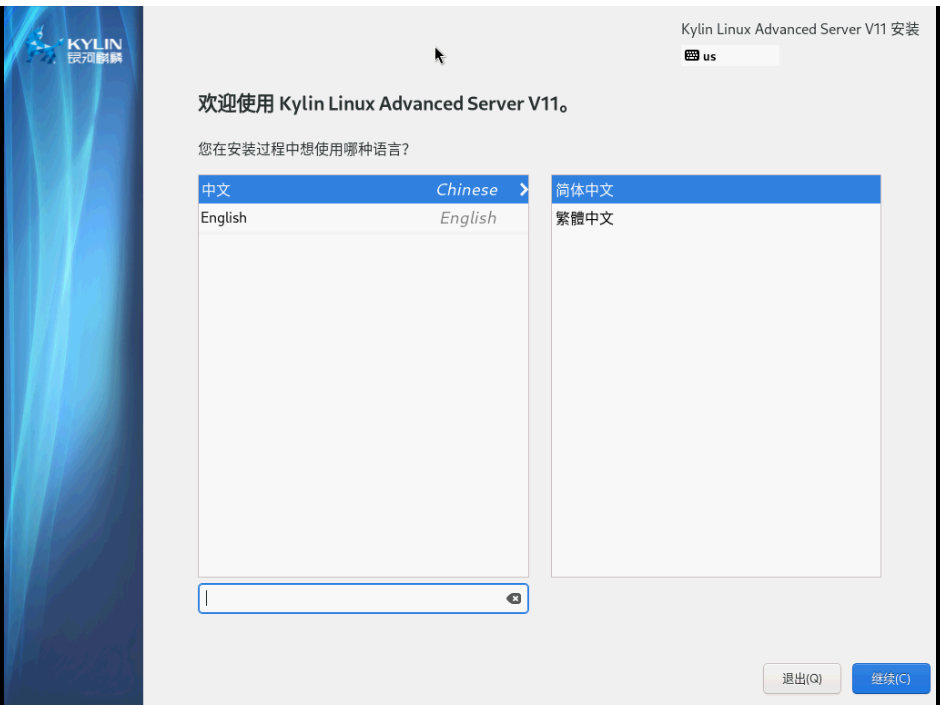

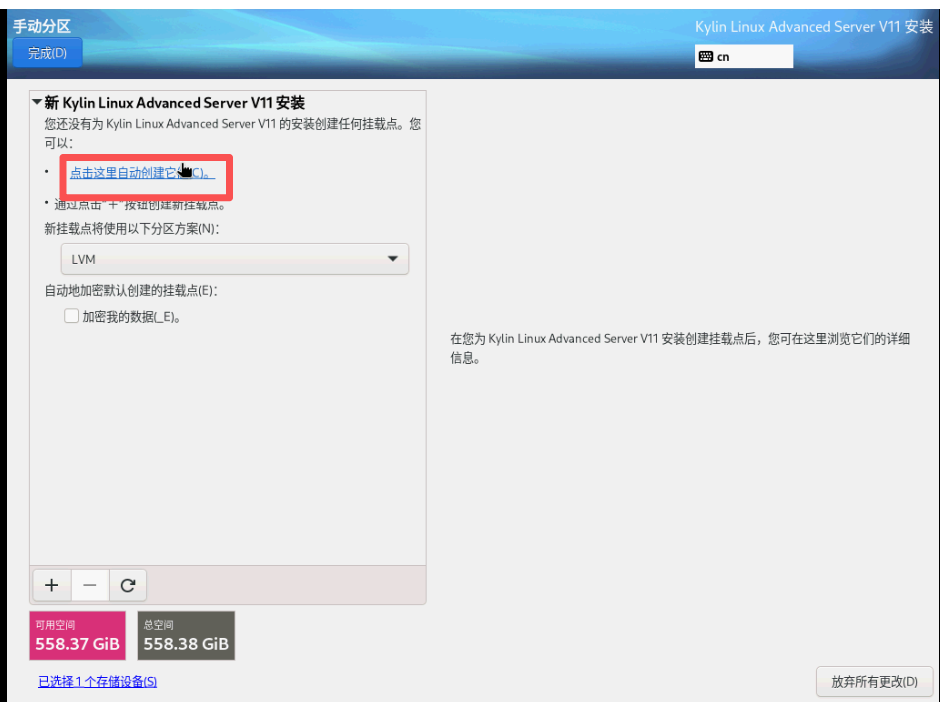

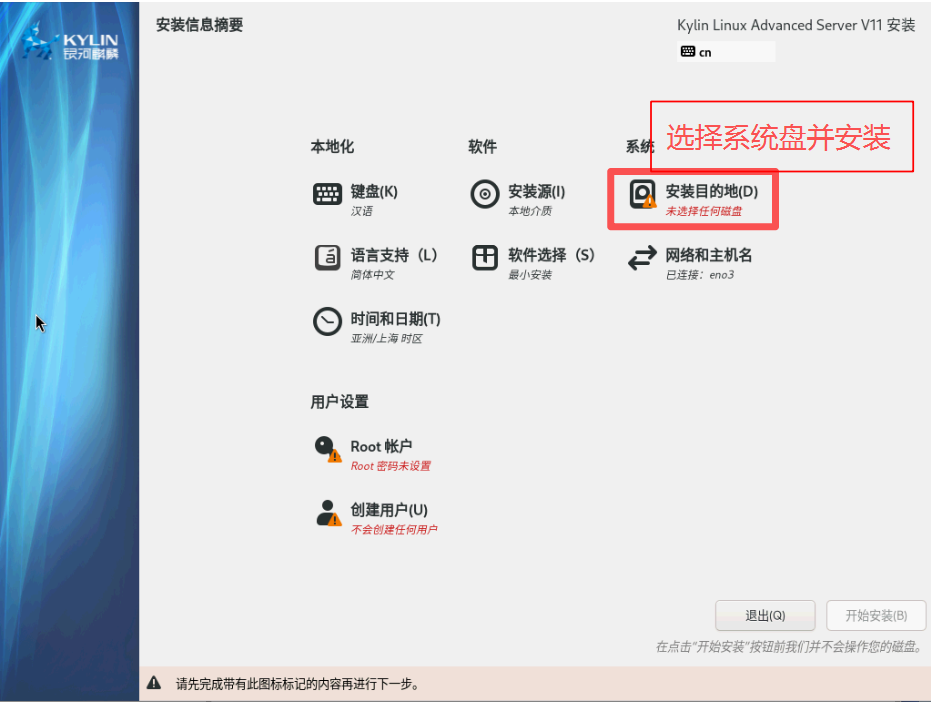

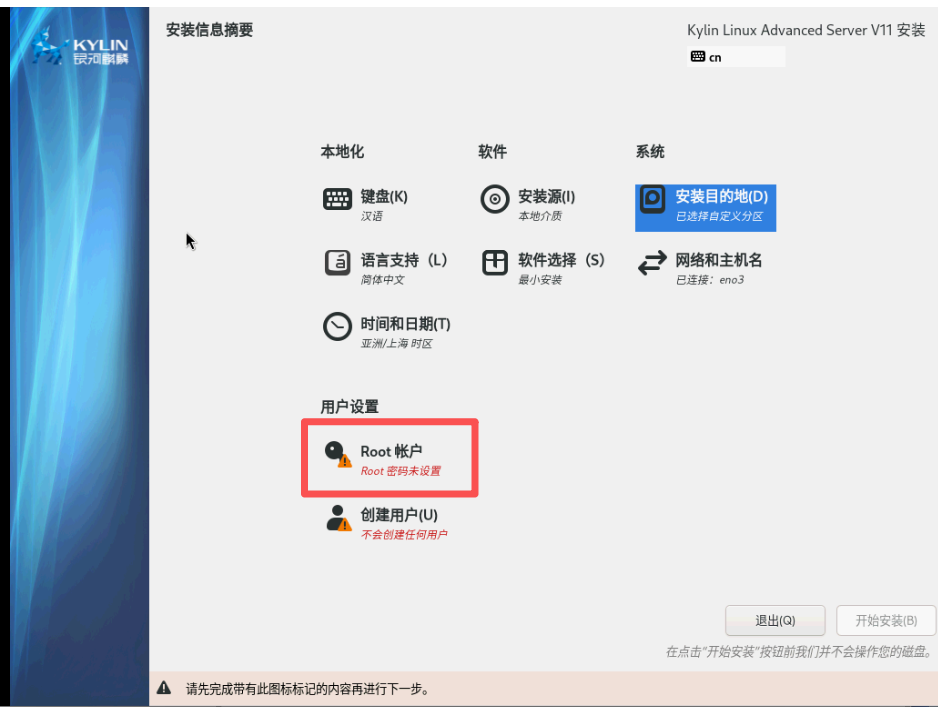

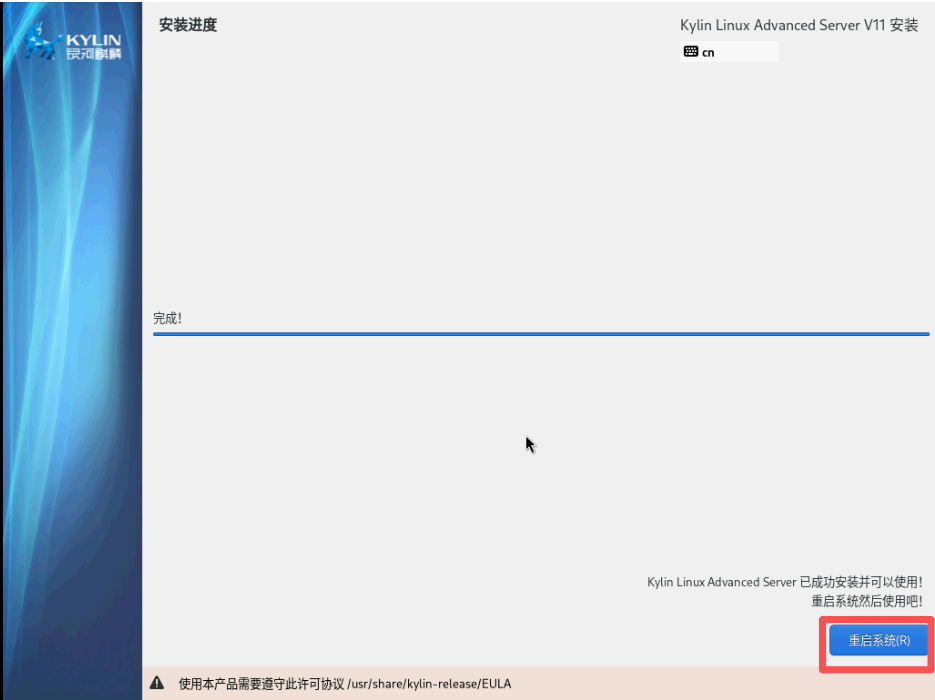

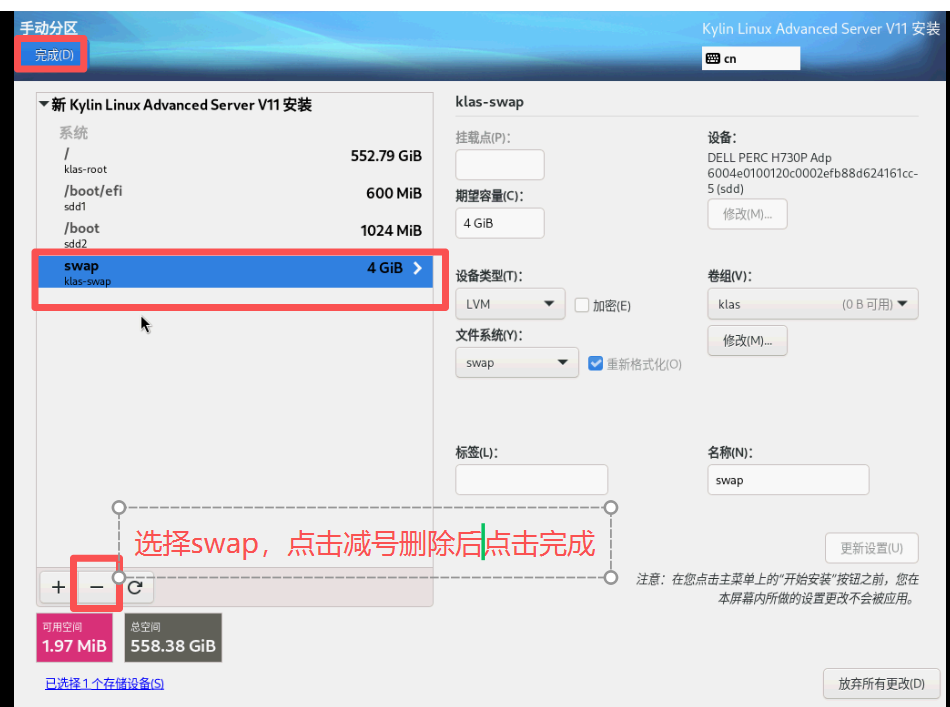

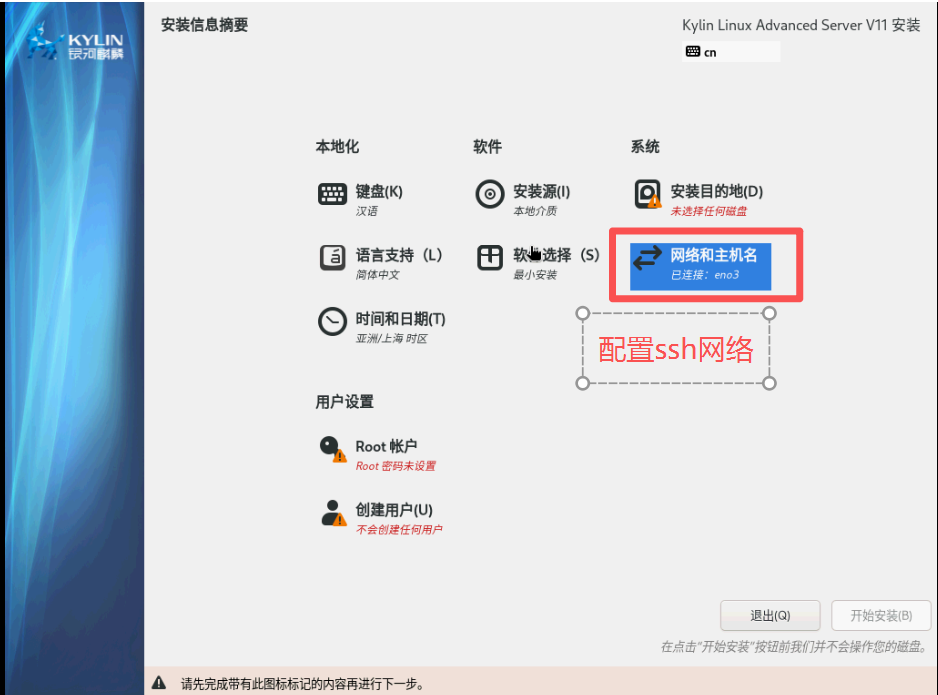

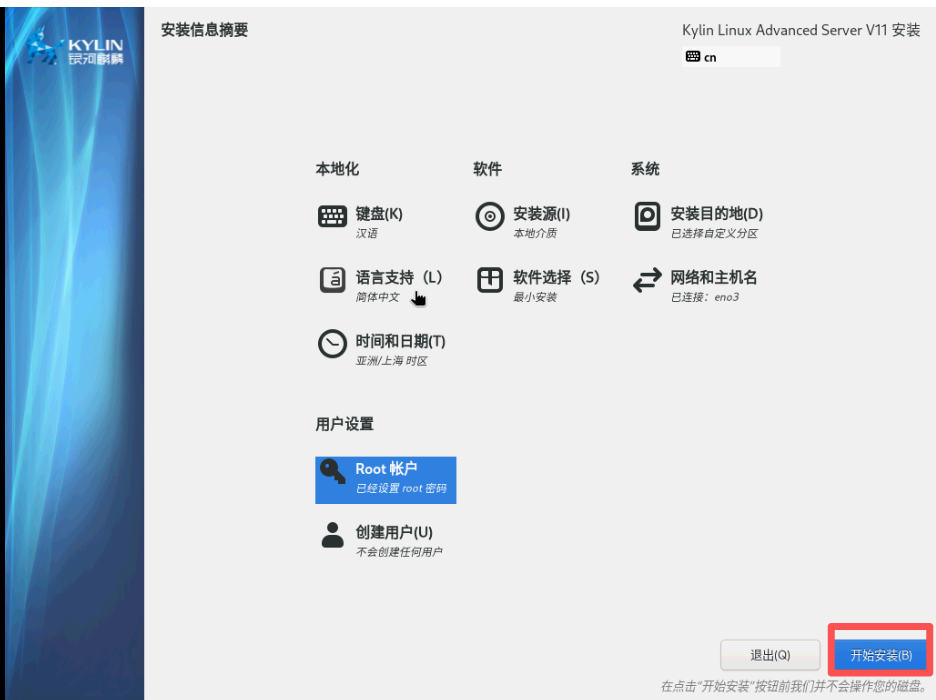

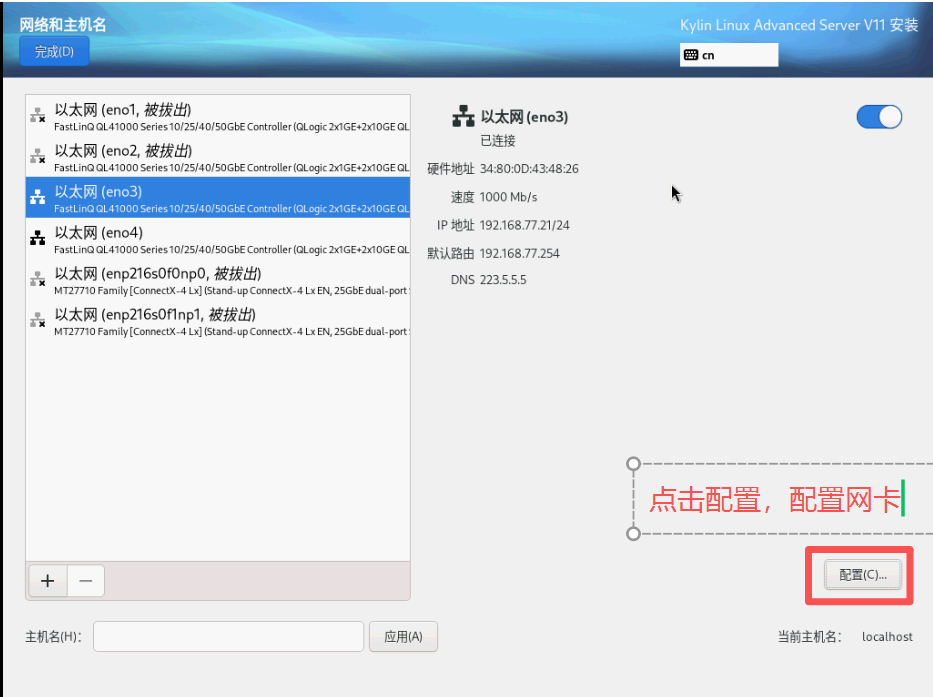

Kylin-Server-V11-2503-Release-General-20250715-X86_64.iso

网口配置

管理网、业务网和存储public、存储cluster网络使用双网口配置bond4，对应的交换机业务需要配置链路聚合（联系网工配置）。

# ubuntu2204
#使用脚本configure_bond4.sh 下载链接：https://cloud-disk.mandao.com/directlink/public/mstack/文档/mstore/ubuntu2204/configure_bond4.sh
用法：./configure_bond4.sh  <bond_name> <interface1> <interface2> <ip_address> <netmask> <gateway>
例如： ./configure_bond4.sh -a bondmanage eth0 eth1 192.168.1.100/24 192.168.1.1 223.5.5.5

# rocky 9.6
#使用脚本configure_bond4.sh 下载链接https://cloud-disk.mandao.com/directlink/public/mstack/文档/mstore/rocky9.6/configure_bond4.sh
用法： ./configure_bond4.sh  <bond_name> <interface1> <interface2> <ip_address> <netmask> <gateway>
例如： ./configure_bond4.sh -a bondmanage eth0 eth1 192.168.1.100/24 192.168.1.1 223.5.5.5

# kylin v11
#使用脚本configure_bond4.sh 下载链接https://cloud-disk.mandao.com/directlink/public/mstack/文档/mstore/rocky9.6/configure_bond4.sh
用法： ./configure_bond4.sh  <bond_name> <interface1> <interface2> <ip_address> <netmask> <gateway>
例如： ./configure_bond4.sh -a bondmanage eth0 eth1 192.168.1.100/24 192.168.1.1 223.5.5.5

部署Mstack

上传部署包

下载并上传部署包mstorev1.1至/root/目录下，校验tar包的md5值并解压。确保md5值与版本信息中的md5值一致。

# Ubuntu2204
wget https://cloud-disk.mandao.com/directlink/public/mstack/文档/mstack/ubuntu2204/mstack-v1.1.tar
# Rocky9.6
1、提前下载部署包，本地解压后上传。
2、提前下载tar和wget包，在线下载后解压。
https://cloud-disk.mandao.com/directlink/public/mstack/文档/mstack/rocky9.6/tar-1.34-7.el9.x86_64.rpm
https://cloud-disk.mandao.com/directlink/public/mstack/文档/mstack/rocky9.6/wget-1.21.1-8.el9_4.x86_64.rpm
wget https://cloud-disk.mandao.com/directlink/public/mstack/文档/mstack/rocky9.6/mstack-v1.1.tar
# Kylin v11
1、提前下载部署包后上传
2、在线安装wget后，wget https://cloud-disk.mandao.com/directlink/public/mstack/文档/mstack/kylin11/mstack-v1.1.tar

ms5sum mstack-v1.1.tar
tar -xvf mstack-v1.1.tar

预配置

进入mstack-v1.1文件夹配置node_information，添加节点ip和hostname

[mstack_all_node_file]
192.168.77.21 node01
192.168.77.22 node02
192.168.77.23 node02
[mstack_all_node_file]

[mstack_control_node_file]
192.168.77.21 node01
192.168.77.22 node02
192.168.77.23 node02
[mstack_control_node_file]

[storage_all_node_file]
192.168.77.21 node01
192.168.77.22 node02
192.168.77.23 node02
[storage_all_node_file]



[storage_cluster_network_file]
storage_cluster_network  192.168.77.0/24
[storage_cluster_network_file]


[mstack_multinode_config_file]
[control]
192.168.77.21
192.168.77.22
192.168.77.23
[network]
192.168.77.21
192.168.77.22
192.168.77.23
[compute]
192.168.77.21
192.168.77.22
192.168.77.23
[monitoring]
192.168.77.21
192.168.77.22
192.168.77.23
[storage]
192.168.77.21
192.168.77.22
192.168.77.23
[deployment]
192.168.77.21  ansible_connection=local
[mstack_multinode_config_file]

[mstack_globals_config_file]
---
workaround_ansible_issue_8743: yes
node_custom_config: "/etc/kolla/config"
kolla_base_distro: "ubuntu"
openstack_release: "2024.2"
kolla_internal_network: "10.0.28.0/24"
kolla_internal_vip_address: "10.0.28.133"
kolla_external_vip_address: "10.0.28.133"
kolla_internal_fqdn: "mstack_environment.com"
kolla_external_fqdn: "mstack_environment.com"
kolla_enable_internal_hostname: "no"
network_interface: "ens4"
neutron_external_interface: "ens4"
enable_cinder: "yes"
glance_backend_ceph: "yes"
cinder_backend_ceph: "yes"
nova_backend_ceph: "yes"
enable_prometheus: "yes"
enable_grafana: "yes"
enable_opensearch: "yes"
enable_mariabackup: "yes"
  #enable_neutron_dvr: "yes"

# 开启负载均衡器
# enable_octavia: "yes"
# octavia_certs_country: US
# octavia_certs_state: Oregon
# octavia_certs_organization: OpenStack
# octavia_certs_organizational_unit: Octavia
# enable_neutron_provider_networks: yes
# octavia_network_interface: "eno1"
# octavia_amp_flavor:
#   name: "amphora"
#   is_public: no
#   vcpus: 1
#   ram: 1024
#   disk: 5
# octavia_amp_network:
#   name: lb-mgmt-net
#   provider_network_type: vlan
#   provider_segmentation_id: 31
#   provider_physical_network: physnet1
#   external: false
#   shared: true
#     #  shared: false
#   subnet:
#     name: lb-mgmt-subnet
#     cidr: "10.0.31.0/24"
#     allocation_pool_start: "10.0.31.10"
#     allocation_pool_end: "10.0.31.240"
#     gateway_ip: "10.0.31.254"
#     enable_dhcp: yes
# enable_redis: "yes"

# enable_barbican: "yes"   # 开启负载均衡器证书仓库

cinder_cluster_name: ""
[mstack_globals_config_file]

注意：

• kolla_base_distro根据操作系统版填写
• kolla_internal_network管理网络网段
• kolla_internal_fqdn和kolla_external_fqdn为域名
• network_interface为管理网口
• neutron_external_interface为业务网口
• 如果需要负载均衡器则开启Octavia
• octavia_network_interface为管理网口
• provider_segmentation_id为管理网的VlanId
• allocation_pool_start和allocation_pool_end负载均衡管理网络的起始IP地址

执行部署脚本

./deploy_init.sh (依次执行如下编号的脚本)
